Hardware and Chemical Prerequisites
Engineering a recovery system begins with an uncompromising analysis of the feedstock. You cannot design a leaching circuit without a precise elemental map of the waste stream, typically obtained through Inductively Coupled Plasma Optical Emission Spectroscopy (ICP-OES). Why do we often fail at scale? Most operators ignore the variability of the waste, treating a mixed stream of lithium-ion batteries and electronics as a homogenous mass. A successful system requires an automated sorting line capable of separating plastics and ferrous metals before the mineral-rich fractions reach the chemical stage. This initial purification prevents the contamination of reagents and reduces the volume of acid required for dissolution.
- High-torque industrial shredders for particle size reduction to <2mm
- Magnetic and eddy-current separators for ferrous and non-ferrous removal
- Agitated leach reactors with corrosion-resistant PTFE or glass linings
- Centrifugal separators and vacuum belt filters for solid-liquid separation
- Analytical suite including ICP-OES and X-ray fluorescence (XRF) scanners
- Reagent stocks: Sulfuric acid (H2SO4), hydrogen peroxide (H2O2), and organic extractants like Cyanex 272
The chemical infrastructure must be designed for closed-loop reagent regeneration. In high-volume recovery, the cost of sulfuric acid and organic solvents can erode the margins of the recovered cobalt or nickel. Implementing a bipolar membrane electrodialysis system allows the plant to recover acids and bases from the waste brine, effectively recycling the chemistry. This reduces the environmental footprint and shields the operation from the volatility of chemical commodity markets. Without this loop, the process is merely a chemical transfer from one waste form to another.
The Recovery Sequence
- Feedstock Homogenization: Shred the waste and use air classification to remove light plastics, ensuring the chemical reactors receive a consistent mineral density.
- Selective Leaching: Introduce the material to an acidic medium, often H2SO4 with an oxidizing agent like H2O2, to dissolve metals into a pregnant leach solution (PLS).
- Impurity Removal: Adjust the pH to precipitate iron, aluminum, and manganese, which would otherwise interfere with the high-value metal extraction.
- Solvent Extraction (SX): Use organic solvents to selectively bind target metals (e.g., Cobalt) and move them from the aqueous phase to an organic phase.
- Electrowinning or Precipitation: Apply an electric current to plate the pure metal onto a cathode or use carbonate precipitation to create battery-grade precursors.
The tension between hydrometallurgy and pyrometallurgy defines the efficiency of the plant. Pyrometallurgy uses high-heat smelting to recover metals, which is fast but energy-intensive and loses lithium to the slag. Hydrometallurgy, by contrast, operates at lower temperatures and offers far higher selectivity, making it the superior choice for recovering lithium and cobalt. In the Democratic Republic of Congo, industrial-scale recovery is increasingly favoring hydrometallurgical circuits to maximize the yield of cobalt from tailings. The ability to tune the pH and redox potential allows engineers to peel away metals one by one with surgical precision.
Thermodynamics dictate the success of the leaching phase. The kinetics of dissolution are heavily influenced by temperature and stirring speed; a 10-degree Celsius increase can often double the reaction rate, provided the reagent doesn't decompose. However, excessive heat can lead to the co-dissolution of unwanted elements, complicating the later purification stages. Engineers must balance the energy cost of heating against the purity of the resulting pregnant leach solution. This is where the precision of the control system becomes the primary driver of profitability.
The Energy Paradox
Energy intensity is the hidden killer of circularity. If the energy used to recover 1kg of cobalt exceeds the energy required to mine it from a virgin vein in the DRC, the system is an engineering failure, regardless of the environmental narrative.
Regulatory pressures in the European Union are forcing a rapid acceleration of these systems. The 2023 EU Battery Regulation mandates specific recovery targets, such as recovering 16% of cobalt and 6% of lithium from waste batteries by 2031. These targets are not mere suggestions; they are hard engineering constraints that dictate the minimum efficiency of the recovery circuit. Companies are now forced to move away from low-yield smelting toward complex chemical refineries. This regulatory push is effectively turning the EU into a laboratory for large-scale urban mining.
| Method | Lithium Recovery | Cobalt Recovery | Energy Intensity | Chemical Waste |
|---|---|---|---|---|
| Pyrometallurgy | Low (<10%) | High (>90%) | Very High | Low |
| Hydrometallurgy | High (>90%) | High (>95%) | Moderate | High |
| Bio-leaching | Moderate (60%) | Moderate (70%) | Low | Very Low |

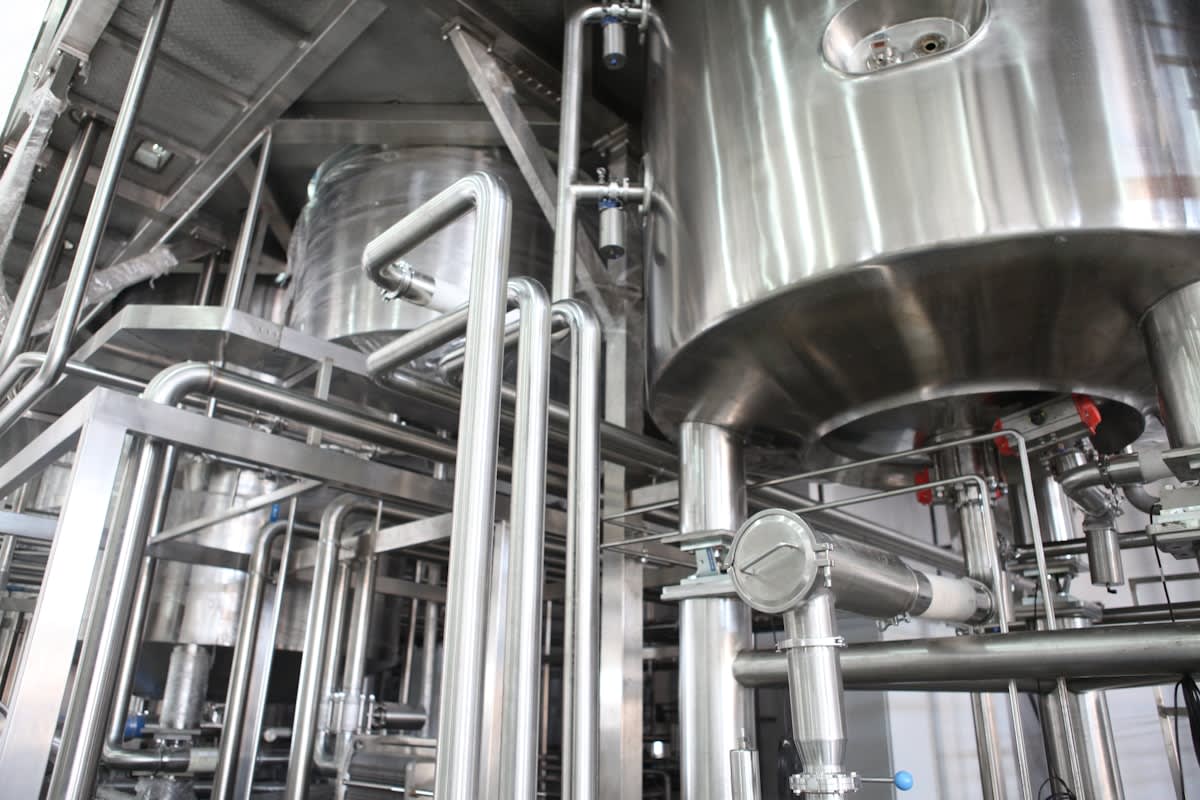

Scaling from a laboratory beaker to a 10,000-liter tank introduces the problem of mass transfer. In a lab, stirring is efficient; in a giant reactor, dead zones form where the acid cannot reach the ore, leading to incomplete recovery. This necessitates the use of computational fluid dynamics (CFD) to optimize impeller design and baffle placement. Without CFD modeling, the transition to industrial scale often results in a 20-30% drop in yield. The physics of the fluid must be as carefully engineered as the chemistry of the solution.
Bio-leaching offers a compelling alternative for low-grade tailings where traditional acid leaching is too expensive. By utilizing extremophile bacteria such as Acidithiobacillus ferrooxidans, engineers can catalyze the oxidation of sulfide minerals at ambient temperatures. While slower than chemical leaching, the operational costs are significantly lower. In Chile, research into bio-leaching for copper and rare earth elements is showing promise for treating waste heaps that were previously considered economically dead. It is a slow-burn strategy that favors long-term stability over immediate throughput.
"The goal is not to recycle, but to refine. We must stop thinking about waste management and start thinking about chemical manufacturing where the raw material happens to be a discarded phone."— Chief Engineer, Urban Mining Initiative
Common Pitfalls
The most frequent error is neglecting the impact of reagent contamination. When treating mixed waste, elements like chlorine or fluorine from battery electrolytes can migrate into the solvent extraction phase, poisoning the organic extractants. This degrades the selectivity of the process and requires frequent, expensive replacement of the organic phase. A robust system must include a pre-treatment scrubbing stage to neutralize these halides before they enter the primary recovery circuit. Ignoring the chemistry of the impurities is a recipe for operational collapse.
Another critical failure is the energy-intensity trap. Many engineers focus solely on the recovery percentage, ignoring the carbon footprint of the energy used to achieve that last 2% of yield. In some cases, the energy required to push recovery from 95% to 98% doubles the total power consumption of the plant. This is the point of diminishing returns. An intelligent system identifies the economic and energetic equilibrium where further recovery costs more than the value of the metal retrieved.
Finally, operators often fail to account for feedstock drift. The composition of electronic waste changes every year as manufacturers shift from cobalt-heavy to nickel-heavy or lithium-iron-phosphate (LFP) chemistries. A system tuned for 2018 batteries will be inefficient for 2024 batteries. Engineering for circularity requires a flexible, modular circuit that can be adjusted in real-time based on the incoming material. Static plants are destined for obsolescence in a market defined by rapid material evolution.
