The Great Stagnation of Speed
The industry is obsessed with TFLOPS. We track the raw computational power of GPUs as if that number tells the whole story. It does not. While processing cores have evolved into monsters of efficiency, the paths leading to those cores have remained narrow. This is the memory wall. We have built a Ferrari engine but are fueling it through a cocktail straw. When a Large Language Model (LLM) attempts to access billions of parameters, the processor often sits idle, waiting for data to arrive from the memory. This latency isn't just a technical glitch; it is the primary inhibitor of the next leap in generative AI.

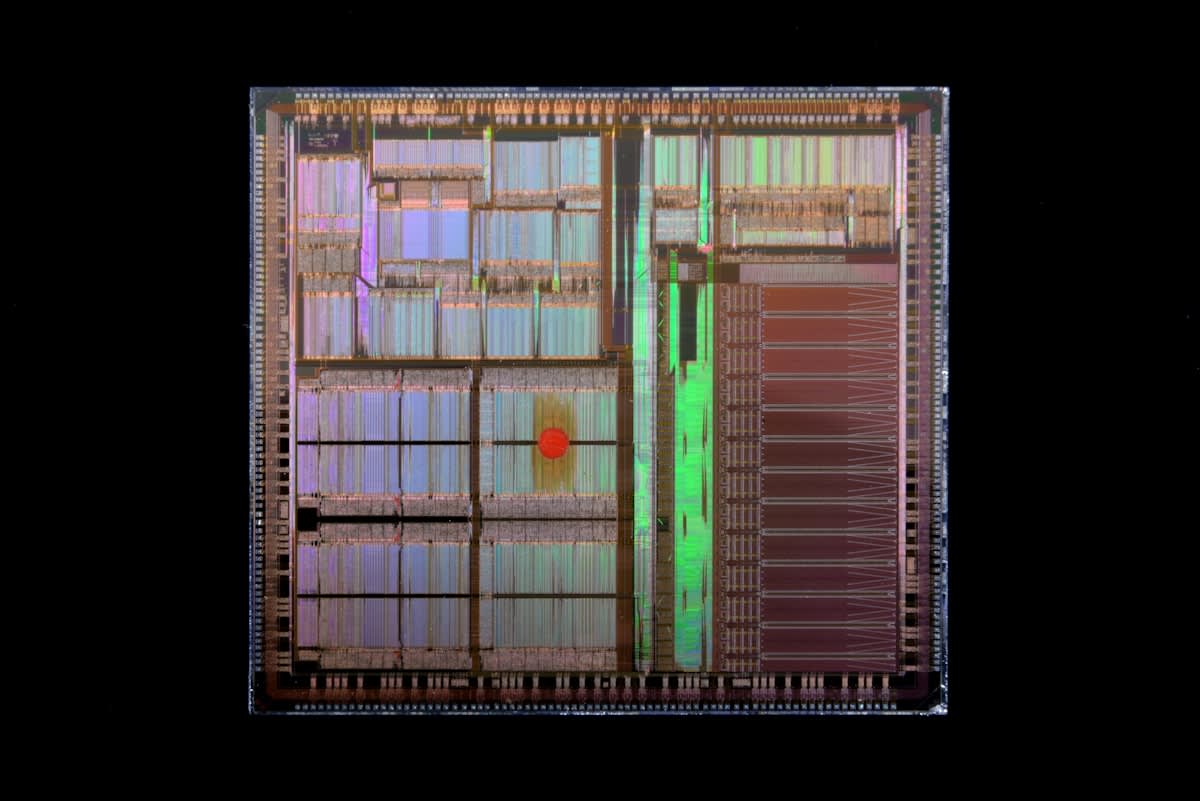

Why does this happen? Traditional GDDR memory, while fast, relies on a layout that spreads chips across a PCB. The physical distance the signal must travel creates a speed limit that physics simply will not allow us to break. Enter High Bandwidth Memory (HBM). By stacking DRAM dies vertically and punching thousands of holes through the silicon—known as Through-Silicon Vias (TSVs)—HBM moves the memory from the periphery directly onto the processor package. It transforms a long, winding road into a high-speed elevator.
The Core Concept
HBM isn't just 'faster RAM.' It is a fundamental architectural shift that trades traditional PCB routing for 3D stacking, allowing for a bus width that dwarfs standard memory by orders of magnitude.
The Delta: From Luxury to Necessity
Twelve months ago, HBM3 was the gold standard, a high-end component for the most expensive clusters. Today, the conversation has shifted violently toward HBM3e. The delta is staggering. We are no longer talking about incremental percentage gains in bandwidth; we are seeing a total reconfiguration of how AI clusters are deployed. The demand for HBM3e has surged because the models themselves have grown. As we move from 100-billion parameter models to trillion-parameter architectures, the amount of memory bandwidth required to keep a GPU saturated has scaled exponentially.
Consider the shift in capacity. A year ago, 80GB of HBM was the benchmark for flagship AI accelerators. Now, we are pushing toward 141GB and beyond. This isn't just about fitting a larger model into memory; it is about reducing the need to swap data between the GPU and the slower system RAM. Every time a chip has to reach outside its own package for data, performance plummets. The industry has realized that memory capacity is the new currency of AI power.
The Geopolitical Triangle: Seoul, Hsinchu, and Boise
The production of HBM is not a localized event; it is a high-stakes geopolitical ballet. In Seoul, SK Hynix and Samsung fight for dominance in the fabrication of the DRAM stacks. SK Hynix currently holds the edge, having mastered the mass-production yields of HBM3e. But the story doesn't end in Korea. These stacks are useless without advanced packaging. This is where Hsinchu, Taiwan, becomes the center of the universe. TSMC's CoWoS (Chip on Wafer on Substrate) technology is the glue that bonds the HBM stacks to the GPU logic. If TSMC cannot package the chips fast enough, it doesn't matter how many stacks Samsung or Hynix produce.
Meanwhile, in Boise, Micron is aggressively attacking the market. By focusing on energy efficiency and a leaner stacking process, Micron is positioning itself as the alternative to the Korean duopoly. The competition is fierce because the margins are astronomical. HBM is significantly more expensive to produce than standard DRAM, but AI hyperscalers are paying a premium because there is simply no substitute. The bottleneck has created a seller's market of unprecedented proportions.
| Generation | Typical Bandwidth | Stack Height | Primary Use Case |
|---|---|---|---|
| HBM2e | 460 GB/s | 4-8 High | Early LLM Training |
| HBM3 | 819 GB/s | 8-12 High | H100 / A100 Clusters |
| HBM3e | 1.2 TB/s+ | 12-16 High | B200 / Next-Gen AI |
Does this concentration of power worry the market? It should. When the entire global AI trajectory depends on a few factories in Taiwan and Korea, the system is fragile. However, the current phase is one of adaptation. We are seeing a massive push to diversify packaging capabilities and increase the number of qualified suppliers for HBM3e to avoid a single point of failure.
"We have reached the end of the era where you could just add more compute to solve a problem. The battle has shifted from the processor to the interconnect. If you can't move the data, the fastest chip in the world is just a very expensive heater."— Industry Lead, Semiconductor Architecture
The Packaging Nightmare and the Yield Gap
The real drama isn't in the design; it is in the yield. Stacking 12 or 16 layers of DRAM is an exercise in extreme precision. If a single layer in the stack is defective, the entire unit is often scrap. This is why some players have struggled to qualify their HBM3e for the latest NVIDIA chips while others have sailed through. The 'yield gap' is the difference between a profitable product line and a multi-billion dollar write-down. It is a brutal game of margins where a 1% increase in yield can equal hundreds of millions in revenue.
Furthermore, the thermal challenge is immense. Stacking memory on top of a scorching hot GPU creates a heat trap. Engineers are now experimenting with new materials and liquid cooling solutions to prevent the HBM from throttling. The goal is to maintain peak bandwidth without melting the silicon. This thermal battle is the next frontier of AI hardware.
Beyond the Leap: The Road to HBM4
Looking forward, the industry is already eyeing HBM4. The most radical change proposed is the integration of logic directly into the memory stack. Imagine a world where the memory doesn't just store data but performs basic computations itself. This 'Processing-in-Memory' (PIM) approach would effectively kill the memory wall by eliminating the need to move data to the GPU for simple operations. It is the ultimate realization of efficiency.
Will this democratize AI? Likely not. The cost of HBM4 will be even higher, further concentrating AI power in the hands of those who can afford the most advanced hardware. Yet, the opportunity for resilience lies in the software. We are seeing a parallel rise in 'small language models' (SLMs) that are designed to be memory-efficient. The hardware push for HBM is driving a software push for optimization.
The Integration Shift
The transition to HBM4 will likely see a shift in who controls the design, as memory makers and chip designers merge their workflows more tightly than ever before.
The memory bottleneck is not a wall, but a filter. It filters out the inefficient and rewards those who can master the physics of 3D integration. As we move into 2025, the winner of the AI race won't be the company with the smartest algorithm, but the one with the widest pipe.
