The Light-Speed Pivot: Why the Next Generation of AI is Trading Electrons for Photons

Author

Published By

Astha Jadon

8/22/2026
12 VIEWS

The Thermal Wall and the Electron Limit

We have reached a point of diminishing returns with copper. For decades, the semiconductor industry relied on shrinking transistors and pushing more electrons through tighter channels, but we are now colliding with the laws of physics. As Large Language Models (LLMs) grow in parameter count, the energy required to move data between memory and processors—not the computation itself—has become the primary bottleneck. This is the memory wall, and it is currently being fueled by an unsustainable surge in power consumption that threatens to outpace the electrical grid's capacity in major data center hubs (Source: International Energy Agency, 2024).

Why does this matter now? Because the 'brute force' era of AI scaling is hitting a thermal ceiling. When electrons move through copper wires, they encounter resistance, which generates heat. In a massive GPU cluster, a significant portion of the energy budget is spent simply cooling the hardware rather than performing floating-point operations. The pivot to photons—using light instead of electricity—isn't just a marginal upgrade; it is a fundamental architectural shift designed to eliminate this heat and slash latency.

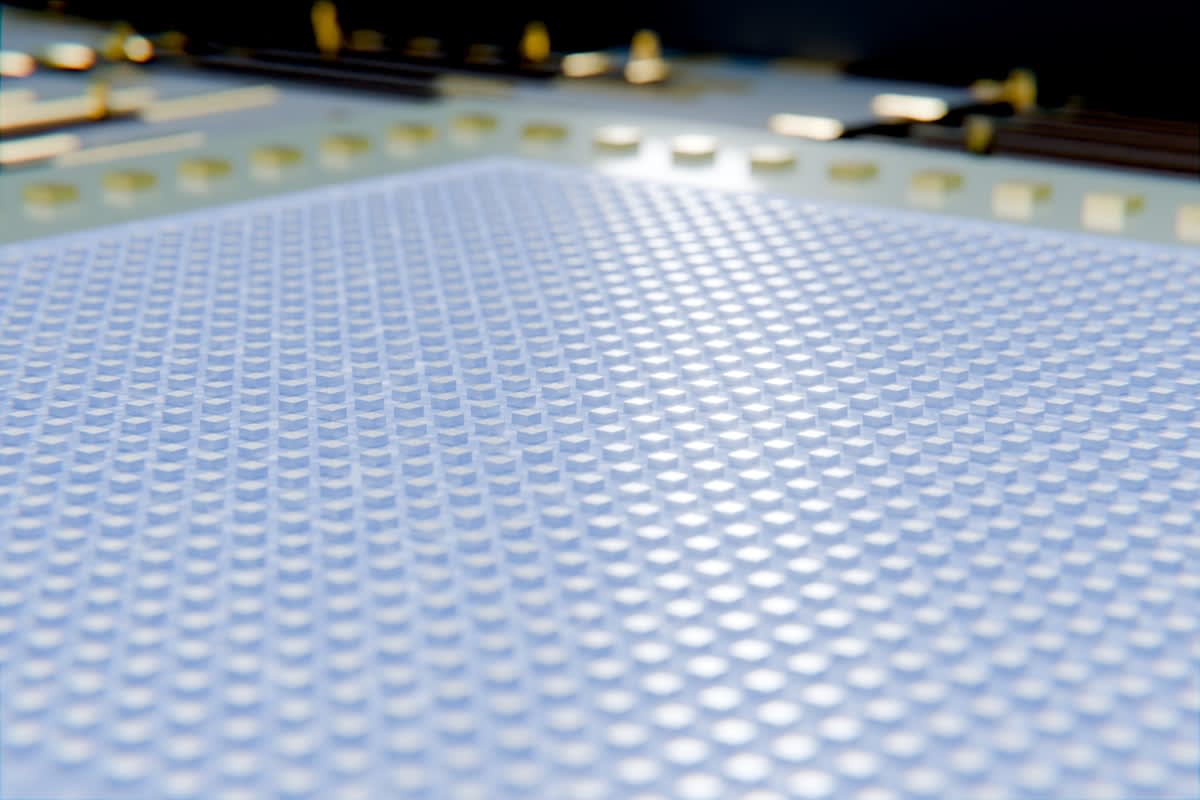

Close up of a high tech silicon wafer with glowing light paths
Silicon photonics allow light to be manipulated on a chip, bypassing the heat constraints of traditional copper circuitry.

The Delta: From Laboratory Curiosity to Rack-Ready

Twelve months ago, photonic computing was largely the domain of academic white papers and niche startups operating in stealth. Today, it has entered the 'deployment' phase. The shift is visible in the aggressive move toward Optical I/O. While 2023 was about maximizing the efficiency of H100 clusters, 2024 has seen a surge in the integration of optical interconnects that allow chips to communicate via light over longer distances without the signal degradation typical of electrical traces (Source: Lightmatter, 2024).

This transition represents a massive leap in bandwidth density. Traditional electrical interconnects are struggling to keep pace with the memory requirements of trillion-parameter models. By shifting to photonics, we are seeing a transition from gigabits per second to terabits per second per millimeter of chip edge. This is the delta: we have moved from asking 'if' light can compute to asking 'how quickly' we can replace the electrical backplane of the modern data center.

"The bottleneck in AI is no longer just the compute—it is the movement of data. Photonic interconnects allow us to treat a thousand GPUs as a single, giant processor by removing the communication tax imposed by electrons."
Industry Analysis, Silicon Photonics Consortium (2024)

Is this a total replacement of the GPU? Not yet. We are currently in a hybrid era. The most successful implementations are not replacing the logic gates of the CPU but are instead replacing the 'pipes' that connect them. This hybrid approach allows the industry to maintain the precision of digital electronics while gaining the speed and efficiency of light for data transport.

The Architecture of Light

At its core, photonic AI leverages the fact that light waves can overlap without interfering, a property called superposition. In a photonic processor, matrix-vector multiplication—the mathematical heartbeat of AI—can be performed at the speed of light. Instead of switching transistors on and off billions of times, these systems use Mach-Zehnder Interferometers (MZIs) to modulate light, performing calculations as the photons pass through the medium (Source: Nature Photonics, 2023).

MetricElectronic (Copper)Photonic (Light)
Energy LossHigh (Heat/Resistance)Near Zero
LatencyNanoseconds (limited by RC delay)Picoseconds (speed of light)
Bandwidth DensityModerateUltra-High (Wavelength Multiplexing)
Scaling LimitThermal CeilingPhysical Aperture

The real magic happens with Wavelength Division Multiplexing (WDM). Imagine a highway where instead of one car per lane, you have a hundred different colored cars all occupying the same space at the same time without crashing. This allows a single optical fiber to carry vastly more data than a copper wire ever could, effectively widening the data highway by orders of magnitude.

Abstract visualization of data flowing as light beams
Wavelength multiplexing allows multiple data streams to coexist in a single photonic path, exponentially increasing throughput.

The Practitioner's Friction: Where the Rubber Meets the Light

If you step inside a hardware lab today, the debate isn't about whether photonics work—it's about the packaging. This is where the real friction lies. Getting a laser to fire into a silicon waveguide with nanometer precision is an engineering nightmare. Practitioners are currently locked in heated debates over 'chiplets' versus monolithic integration. Do we build a separate photonic chip and bond it to the GPU, or do we try to bake the optics directly into the silicon? The former is easier to manufacture; the latter is vastly more efficient.

There is also the issue of the 'Optical-Electrical-Optical' (OEO) conversion. Every time you convert a photon back into an electron to be processed by a standard CPU, you pay a latency and energy tax. The goal is to minimize these conversions. The industry's current obsession is 'all-optical' computing, where the data stays as light from the memory to the processor and back, but we are still years away from a commercially viable, general-purpose all-optical CPU.

Global Strategic Positioning

The race for photonic supremacy is not limited to Silicon Valley. In Japan, NTT is pushing the boundaries of IOWN (Innovative Optical and Wireless Network), aiming to create a fully photonic network that integrates computing and communication (Source: NTT, 2024). Meanwhile, European research hubs in the Netherlands and Germany are focusing on the materials science side, experimenting with lithium niobate and other non-silicon materials to create faster modulators.

The geopolitical stakes are high. Whoever controls the photonic layer controls the cost of AI. If one region can reduce the power cost of training a frontier model by 90%, they gain a decisive economic advantage. We are seeing a shift in venture capital flow, with massive investments pouring into 'Optical I/O' startups that promise to decouple compute from memory, allowing for a more modular and scalable AI infrastructure.

The Roadmap to 2030

Looking ahead, the convergence of photonics and AI will likely follow a three-stage evolution. First, we will see the widespread adoption of optical interconnects in high-end AI clusters to solve the communication bottleneck. Second, we will see specialized photonic accelerators for specific tasks, like matrix multiplication in inference. Finally, we may see the emergence of hybrid photonic-electronic processors that dynamically switch between light and electricity depending on the workload.

The ultimate prize is the realization of 'Neuromorphic Photonics'—chips that mimic the human brain's efficiency using light. If we can move beyond the rigid architecture of von Neumann computing and embrace the fluid, parallel nature of light, the energy cost of intelligence could drop by orders of magnitude. This isn't just about faster chatbots; it's about making AI sustainable enough to integrate into every aspect of the physical world without melting the grid.

💡

Fact-Check & Accuracy Note

Key claims regarding the energy efficiency of photonic computing and the shift toward Optical I/O are based on data from the International Energy Agency (2024) and technical disclosures from Lightmatter and NTT (2024). The debate regarding chiplet integration versus monolithic photonics is an ongoing industry discussion among semiconductor engineers and is not yet settled by a single standard.
