The End of the Heartbeat: Why Event-Driven Silicon is Killing the Von Neumann Clock

Author

Published By

Prince Verma

8/6/2026
17 VIEWS

The Tyranny of the Clock

Why do we still build machines that force every single transistor to wait for a heartbeat? For seventy years, the global tech industry has operated under the von Neumann architecture, a design where the processor and memory live in separate houses. This separation creates a brutal inefficiency known as the memory wall. Every single piece of data must be shuttled back and forth across a narrow bus, a process that is not just slow, but energy-catastrophic. When the physical act of moving a bit costs more than the act of calculating it, you aren't running a computer; you are running a very expensive heating element.

The numbers reveal a systemic failure. In many traditional systems, the energy and time costs of moving data between processing and memory units account for over 60% of total system power. This is a staggering waste. We have spent decades optimizing the speed of the processor, yet the bottleneck remains the road leading to it. This is why the era of constant processing—where the CPU cycles regardless of whether meaningful work is happening—is becoming an evolutionary dead end. The industry is finally waking up to the reality that the clock is the problem.

Abstract visualization of a silicon chip with glowing neural pathways
The shift from linear processing to event-driven neural architectures represents a fundamental change in silicon physics.
💡

Systemic Insight

The 'Memory Wall' isn't a technical glitch; it's a structural limitation of the von Neumann architecture. To break it, we must stop moving data to the processor and start moving the processor to the data.

Computing with Physics, Not Logic Gates

If the problem is movement, the solution is stasis. Enter in-memory computing. Instead of fetching a weight from a memory cell to multiply it in a GPU, new silicon uses the physics of the hardware itself to perform the math. By utilizing memristors—tunable resistors like RRAM and MRAM—engineers are ditching the traditional logic gate. In these systems, Ohm's law handles the multiplication, and Kirchhoff's law handles the addition. The weights of a neural network are stored in the resistance state of the device itself. The data doesn't move; the result simply emerges from the physics of the circuit.

This is where Ferroelectric Hafnium Oxide enters the fray. By advancing devices and circuit architectures for in-memory computing, this material helps bridge the gap between storage and execution. However, the transition isn't a simple swap of parts. Different tasks require different trade-offs. Inference and online learning demand different combinations of state precision, update dynamics, and read margins. We are moving away from the 'one-size-fits-all' CPU toward a fragmented landscape of specialized, event-driven accelerators.

"The weights of the neural network are stored in the resistance state itself, there is no need of fetching it for processing, thus removing the Von-Neumann bottleneck."
Industry Analysis on Memristive Systems
FeatureVon Neumann ArchitectureEvent-Driven / In-Memory
Data MovementConstant shuttling between CPU and RAMComputation happens in-place
Energy ProfileHigh overhead (60%+ spent on movement)Ultra-low; driven by physical events
Processing TriggerClock-driven (Synchronous)Event-driven (Asynchronous)
Mathematical BasisBoolean Logic GatesPhysical Laws (Ohm's/Kirchhoff's)
Primary BottleneckThe Memory WallState Precision & Peripheral Complexity

This shift creates a fascinating paradox: to make computers smarter and faster, we are making them more analog. By embracing the inherent variability of resistors and capacitors, we are building systems that mimic the biological efficiency of the human brain. This isn't just an incremental upgrade; it's a rejection of the digital dogma that has dominated silicon since the 1940s.

The Neuromorphic Surge: From Labs to Markets

The transition to event-driven silicon is no longer theoretical. We are seeing a rapid acceleration in neuromorphic computing, which seeks to emulate the brain's spiking neural networks (SNN). Unlike traditional AI that processes dense tensors of numbers, SNNs only fire when a specific threshold is met—an 'event.' This means the chip stays mostly dark, consuming almost zero power until it is needed. It is the ultimate expression of resilience and efficiency.

A critical breakthrough occurred in October 2025, when a collaboration between Tohoku University, The University of Tokyo, and the Japan Atomic Energy Agency (JAEA) demonstrated a new spintronic memory mechanism. This mechanism enables faster, lower-power magnetic domain-wall motion, providing a foundation for brain-inspired memory technologies. By leveraging the spin of electrons rather than just their charge, these researchers are opening the door to hardware that can learn and adapt in real-time without draining a battery in minutes.

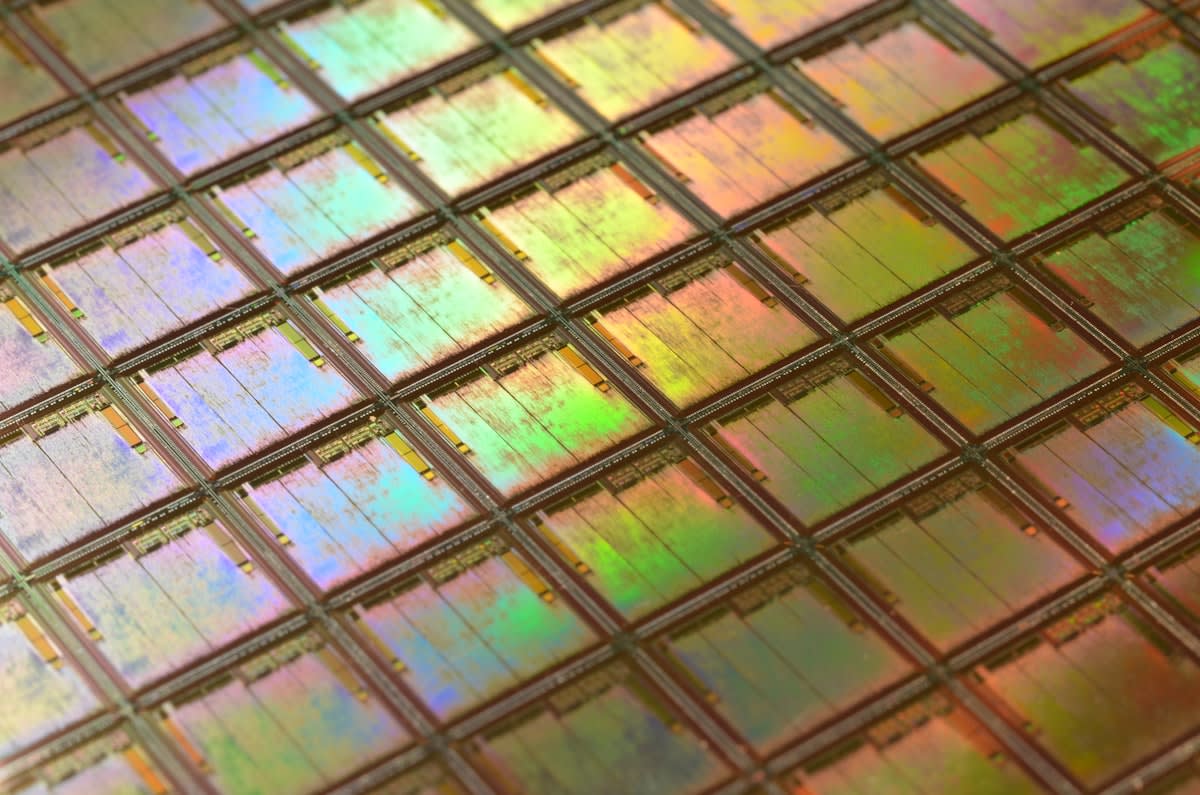

Close up of a spintronic memory wafer
Spintronic memory mechanisms, like those developed in Japan, are essential for the next generation of energy-efficient neuromorphic chips.

The market is reacting with predictable intensity. The neuromorphic computing market is expanding exponentially, projected to grow from $1.44 billion in 2024 to $1.81 billion by 2025. This represents a CAGR of 25.7%. Even more telling is the growth of the underlying hardware; the neuromorphic chips market itself is forecasted to rise from $0.68 billion in 2024 to $0.78 billion in 2025, maintaining a CAGR of 14.8%. This isn't a speculative bubble; it's a capital flight toward the only architecture capable of sustaining the AI explosion.

Neuromorphic Market Growth (2024-2025)

Executive Insight

+18.4%

YTD Growth

The Strategic Realignment

As we move beyond the clock, the strategic focus of the semiconductor industry is shifting. We are seeing the rise of Spiking Neural Networks (SNN) and Spike-Timing-Dependent Plasticity (STDP). These aren't just academic terms; they are the blueprints for chips that can perform online learning. Traditional AI is trained in a massive data center and then deployed as a static model. Event-driven silicon allows for a chip that learns from its environment in real-time, adapting its resistance states without needing to send data back to a cloud server.

However, the path forward is not linear. The industry is discovering that no single platform will dominate. The requirements for associative search differ wildly from those of event-driven processing or simple inference. This means the future of silicon is not a faster CPU, but a heterogeneous tapestry of in-memory blocks, spintronic memory, and analog accelerators. The 'general purpose' processor is becoming a niche tool for orchestration, while the actual work is handed off to event-driven silicons.

  • Elimination of the 60% energy waste associated with the von Neumann memory wall.
  • Integration of Ohm's and Kirchhoff's laws directly into the hardware for matrix multiplication.
  • Deployment of spintronic memory for faster, lower-power magnetic domain-wall motion.
  • Market transition toward a $1.81 billion neuromorphic ecosystem by 2025.

We are witnessing the death of the heartbeat. The era of constant processing—where the clock dictates the pace of thought—is giving way to a more organic, event-based model. In this new paradigm, silence is the default, and computation is the exception. For a world drowning in data and starving for energy, this isn't just a technical victory; it's a systemic necessity.
